Name: ASME Design Standard Manifold Header Boiler Tube with Customized Specification for Power Station Application
Brand: ZHANGJIAGANG HUA DONG ENERGY TECHNOLOGY CO.,LTD
Price: 8000 USD
Availability: InStock

Nhà Sản phẩm Ống Serpentine

ASME Design Standard Manifold Header Boiler Tube with Customized Specification for Power Station Application

Thông tin chi tiết sản phẩm:

Thanh toán:

Số lượng đặt hàng tối thiểu:	20
Giá bán:	8000

Tiếp xúc

Chi tiết sản phẩm

Mẫu số:	HDB	Xử lý bề mặt:	Sơn
Nhiên liệu:	than đá	Kiểu:	đốt than
Kết cấu:	Ống nước	Phong cách:	Nằm ngang
Tiêu chuẩn thiết kế:	Asme	Gói vận chuyển:	khung sắt
Đường kính (OD):	76mm~914mm	Chiều dài (Tối đa):	23000mm
Nhiệt độ:	300 ~ 1500oC	Năng lực sản xuất:	500 tấn/tháng
Kiểm tra vật liệu:	100% NDT	Kiểm tra hàn:	Tia X, tia γ, chất thẩm thấu chất lỏng
Kiểm tra áp lực:	Kiểm tra thủy lực
Làm nổi bật:	ASME Design Standard Manifold Header Boiler Tube , Customized Specification Serpentine Tube , Power Station Application Boiler Header

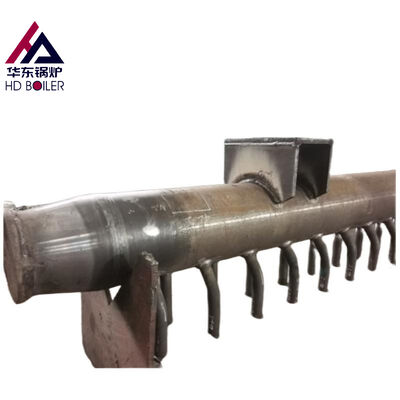

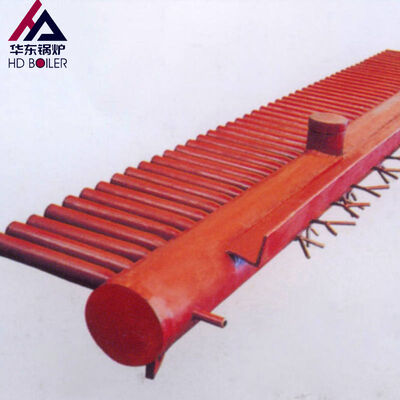

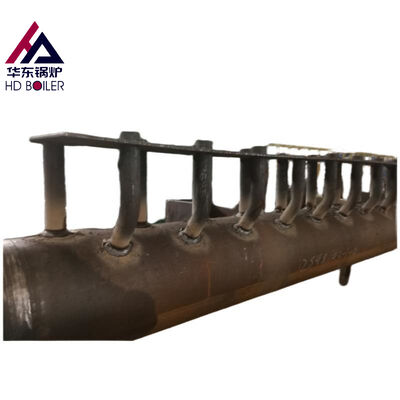

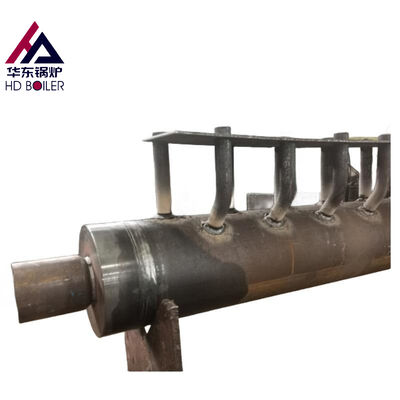

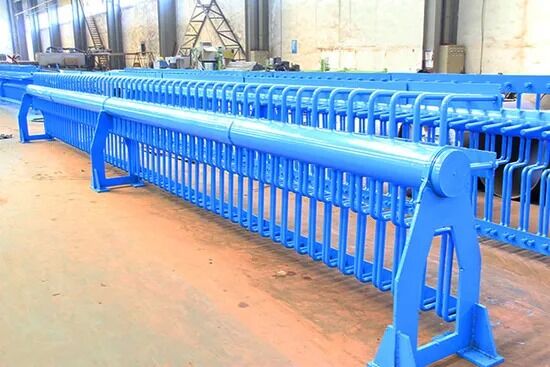

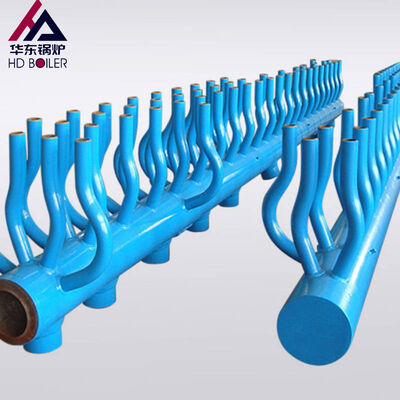

Power Plant Boiler Parts Manifold Header Boiler Tube

To improve boiler efficiency, header boilers have evolved into tube boilers to increase heat transfer area. Water flows from the drum to the lower box via the downcomer, distributing to each tube bundle through the box. The water in these tube bundles continuously absorbs thermal energy before returning to the drum after collection in the upper header. These upper and lower headers are critical boiler components.

Technical Specifications

Diameter (OD)	¢76mm ~ ¢914mm
Length (Max)	23000mm
Temperature Range	300°C ~ 1500°C
Brand	Hua Dong Boiler

Company Profile

Zhangjiagang Hua Dong Boiler Co., Ltd., established in 1985, specializes in manufacturing power station boilers, industrial boilers, HRSGs, waste incineration boilers, biomass boilers, and related heating surface components. The company provides comprehensive services from design and manufacturing to installation and maintenance.

Manufacturing Advantages

38 years of industry experience in research, development, and manufacturing with substantial production capacity.

Quality Control System

Impact test and strength calculation reports with applied materials information
100% NDT (non-destructive inspection) reports for steel plate, tube, and electrode
X-ray, γ-ray, and liquid penetrant test inspection reports for welding seams
Hydraulic test reports to ensure standard working pressure and safety

Complete quality assurance and control system certified according to International Quality Standards. We maintain strict compliance with national regulations, standards, and technical requirements, ensuring 100% process and product quality control through stringent inspection and testing throughout manufacturing.

Certifications

ISO 9001: 2015; CE Certificate; EN ISO 3834-2; ASME Certificate with "S", "U" and "NB" Stamps

Frequently Asked Questions

How long is the warranty period?

We provide 18 months warranty for all spare parts (excluding fragile parts).

How can we guarantee quality?

All machines strictly comply with ISO quality and CE system requirements
Each procedure is crafted by professional skilled labor, followed by particular QC
All product information can be checked in our efficient management system

What can you buy from us?

CFB Boiler, HRSG Boiler, Boiler Economizer, Boiler Fin tube, Boiler Air preheater, Boiler superheater, Boiler membrane wall, Boiler manifold headers and other pressure spare parts.

What kind of service do you provide?

Before Sales:

Product information, market research forecasting, product customization, product processing, consultation and other convenience services.

After Sales:

Technical training according to customer requirements
Replacement guarantee under warranty
Maintenance spare parts supply
Regular customer callbacks and visits
Prompt response to complaints and consultations

Delivery Terms: FOB, CFR, CIF, EXW, FCA
Payment Currency: USD, CNY
Payment Types: T/T, L/C, MoneyGram, Western Union, Cash
Languages: English, Chinese

Are you a factory or trading company, where are you located?

We are a factory located just 130km (2 hours by car) from Shanghai Airport. We offer pickup service at Shanghai for customer visits.
