Name: Boiler Fin Tube with 1 Year Warranty and 3 Years Core Components Warranty for Natural Circulation Systems
Brand: ZHANGJIAGANG HUA DONG ENERGY TECHNOLOGY CO.,LTD
Price: 1.00 USD
Availability: InStock

Nhà Sản phẩm Nồi hơi Fin Fin

Boiler Fin Tube with 1 Year Warranty and 3 Years Core Components Warranty for Natural Circulation Systems

Thông tin chi tiết sản phẩm:

Nguồn gốc:	TRƯƠNG GIA CANG, TRUNG QUỐC
Hàng hiệu:	HDB Boiler
Chứng nhận:	ISO9001, ASME, EN,

Thanh toán:

Số lượng đặt hàng tối thiểu:	5
Giá bán:	$1,300-1,500

Tiếp xúc

Chi tiết sản phẩm

Kiểu:	tuần hoàn tự nhiên	Kết cấu:	ống lửa hoặc ống nước
Áp lực:	Áp suất thấp / cao	Sản xuất hơi nước:	Max. Tối đa. 20t/h 20t/giờ
Phong cách:	Thẳng đứng	Nhiên liệu:	Than / khí / than nhiệt / nhiệt, sinh khối, nhiên liệu hóa thạch
đầu ra:	Nước nóng / Hơi nước	Xử lý bề mặt:	Sơn
Ống cơ sở OD:	25,4 mm ~ 1600mm	Độ dày ống cơ sở:	2,5 mm ~ 40 mm
Chiều cao vây:	0,5 mm ~ 20,0 mm	Độ dày vây:	0,5 mm ~ 3,0 mm
Vây cao độ:	5 mm ~ 25,4 mm	Vật liệu:	Thép carbon, thép hợp kim, thép không gỉ
Length:	0
Làm nổi bật:	1 Year Warranty Boiler Fin Tube , 3 Years Warranty H-type Finned Tube , Natural Circulation Boiler Economizer Spare Parts

Boiler Fin Tube for Economizer, Superheater and Reheater, Heat Exchanger

Product Description

H-type finned tube heat exchanger elements maintain a high capacity for heat transfer, possess superior self-cleaning properties and retain the ability to effect flue gas waste heat recovery in boiler renovations. Convective heat transfer coefficient is proportional to fin pitch, but inversely proportional to fin height and fin width. Integrated heat transfer capacity is related to fin efficiency, convective heat transfer coefficient and finned ratio. Pressure drop increases with the increase of fin height and fin width.

Detail

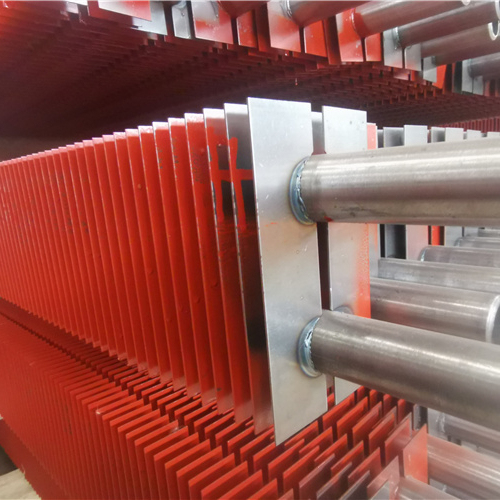

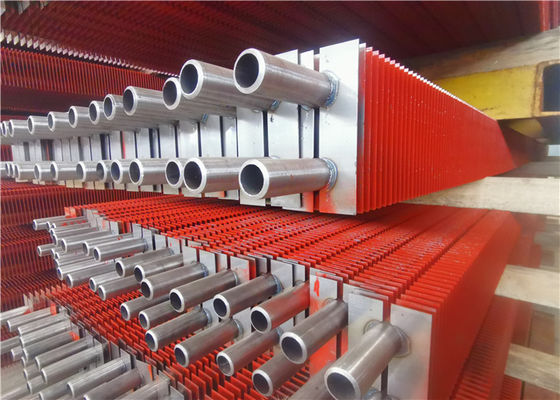

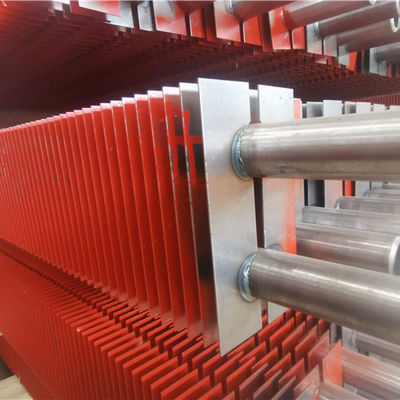

In order to improve the heat exchange efficiency and extend surface heat transfer, H-type finned tubes have been widely used in boilers and waste heat recovery in recent years. H-type finned tubes are derived largely from rectangle finned tubes. Because of their unique groove structure on the fin surface, H-type finned tubes have excellent anti-wear and anti-fouling performance.

Structure

Our products can be modified according to our customers' needs and the situation. We design and manufacture safe, reliable and efficient H-fin tubes. HD BOILER has also completed stand-alone product quality assurance systems. Production of H-fin tubes are with high heat transfer efficiency, they have flue gas resistance and are designed for a small space.

Technical Parameters

Item	Base Tube O.D (mm)	Base Tube Thickness (mm)	Fin Height (mm)	Fin thickness (mm)	Fin Pitch (mm)
Range	25.4 mm ~1600mm	2.5 mm ~40 mm	0.5 mm ~20.0 mm	0.5 mm ~3.0 mm	5 mm ~ 25.4 mm
Material	Carbon Steel, Alloy Steel, Stainless Steel
Length	0<L≤ 12000

Product	H-fin Tube
Base Pipe	Welded or Seamless
Material	carbon steel, alloy steel, stainless steel, non-ferrous alloys and nickel alloys.
Application	H economizer, H evaporator, H superheater, H air heater and etc.

Quality Control

Impact test and Strength calculation report with applied materials information.
100%NDT(non-destructive inspection) report of steel plate, tube and electrode
X-ray, γ-ray and liquid penetrant test inspection report (welding seam): to ensure the quality of the entire boiler
Hydraulic test report: ensure the standard working pressure and safety
